Cold drawn T-shaped steel

Cold drawn T-shaped beams offer superior dimensional accuracy and surface finish. This process enhances mechanical properties, resulting in higher strength and tighter tolerances compared to hot-rolled sections.<br/> Grade：Q355B S355JR Q345 Q235B A36 S235JR Q355 Q235 ST37 16Mn<br/> Length：6m/12m/as reuqest<br/> Section：20*20mm-1000*1000*mm/as request

Inquiry

E-mail：xunming@angyihao.com

WhatsApp：8613328103358

Detailed Description

24 hours fast respond!!! Feel free to contact us.

Item	Welding T-beams
Place of Origin	WuXi，China
Standard	ASTM/JIS/EN/BS/GB/AiSi
Grade	Q355B S355JR Q345 Q235B A36 S235JR Q355 Q235 ST37 16Mn
Technique	Welded
Length	6m/12m/as reuqest
Section	2020mm-10001000*mm/as request
Application	Architecture,Bridges,Curtain wall decoration,Vehicles and ships
Our Advantages	1.Source manufacturer:offering you the most favorable price 2.Direct efficiency: the entire chain of in-house production, warehousing, and delivery results in faster order response 3.Excellent team: Business,Technical,Production Department help you quickly assemble goods
Service	Bending, Cutting,Welding
Packaging	Export standard packing or according to customers’ requirement

Support customization!

If the size you want is not available, please contact customer service.

T-steel
	Specifications	weight per meter	Specifications	weight per meter
	20203	0.94	20204	1.26
	25253	1.18	25254	1.57
	30303	1.41	30304	1.88
	35353	1.65	35354	2.2
	40404	2.51	40405	3.14
	45454	2.83	45455	3.53
	45456	4.24	50504	3.14
	50505	3.93	50506	4.71
	60606	5.65	60607	6.59
	501006*8	8.6	62.51256.5*9	11.9
	75755*7	7.15	741006*9	10.7
	751507*10	15.95	87.5905*8	9.1
	87.51757.5*11	20.15	99994.5*7	9.25
	1001005.5*8	10.85	971506*9	15.6
	1002008*12	25.25	10020412*12	28.35
	1241245*8	12.9	1251256*9	14.85
	1221757*11	22.05	12225211*11	32.2
	1252509*14	36.2	12525514*14	41.1
	1491495.5*8	16.3	1501506.5*9	18.65
	1472008812	28.65	1492019*14	32.5
	14730212*12	42.5	15030010*15	47.25
	15030515*15	53	1731746*9	20.9
	1751757*11	25	1702509*14	39.85
	16935113*13	42.5	17234810*16	57.5
	17235416*16	65.5	17535012*19	68.5
	17535719*19	78	1981997*11	28.35
	2002008*13	33	19530010*16	53.5
	19440215*15	70.5	19739811*18	73.5
	20040013*21	86	20040821*21	98.5
	20740518*28	116.5	21440720*35	142
	2251509*14	32.75	2231998*12	33.35
	2252009*14	38.25	22030011*18	62
	22941730*50	207.5	2481999*14	39.75
	25020010*16	44.8	25320111*19	51.5
	24130011*15	57.5	24430011*18	64.5
	24943245*70	302.5	29819910*15	47.55
	30020011*17	53	30320112*20	60
	29130012*17	68.5	29430012*20	75.5
	29730214*23	87.5	34630013*20	83
	35030013*24	92.5	39630014*22	95.5
	40030014*26	105	44529915*23	106.5
	45030016*28	121.5	45630218*34	143

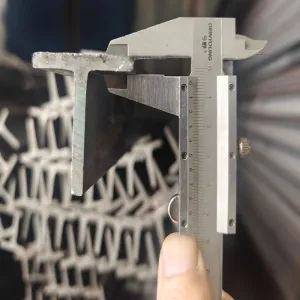

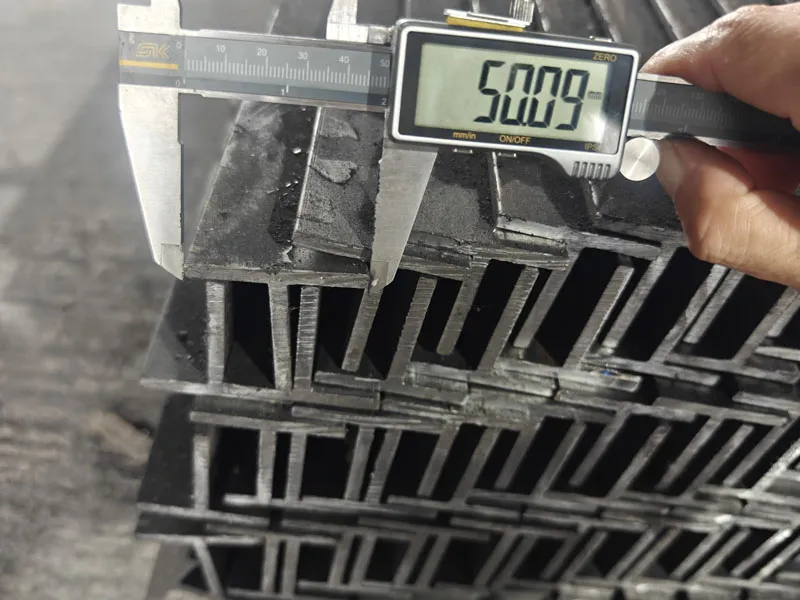

On the left is our product, and on the right is one produced by another company.

Quality of our T beam is guaranteed.

T-shaped steel is commonly used in scenarios such as building, frames, and curtain wall decorations.

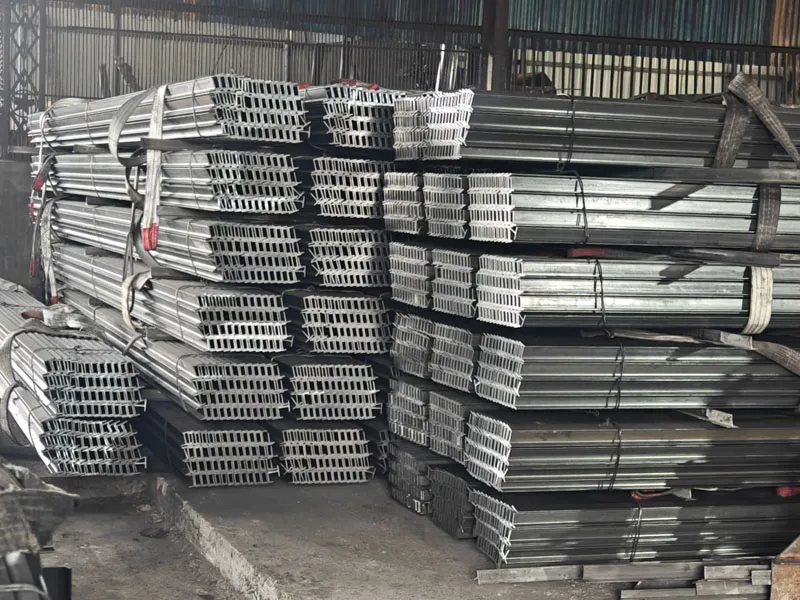

Package of T-shaped steel

Machines about T steel.

CNC flame/plasma cutting machine cuts steel plate raw materials to obtain the web and flange plates required for T-beam production. Laser cutting machine performs high-precision blanking of steel plates to ensure the dimensional accuracy of each component of the T-beam.

T-beam assembling machine aligns and positions the web and flange plates in place to form a qualified T-shaped cross-sectional blank.

Gantry submerged arc welding machine welds the assembled T-beam blank firmly to realize the integral forming of the refined

T-beam Flange straightening machine corrects the verticality and flatness of the T-beam flange and eliminates the deformation caused by welding.

CNC drilling machine drills mounting holes on precision T-beams as required for curtain wall installation.

These are our successful cases !

Own Factory

Give you the most favorable price Avoiding middlemen from profiting from price differences

One-stop Service

Development,Production, Sales

Helping you organize the goods

Rich Experience

Serving multiple projects: Airports, Museums, etc

Wuxi Angyihao Metal Products Co., Ltd.

Wuxi Angyihao Metal Products Co., LTD is an expert manufacturer and distributor of T-shaped steel products with over 15 years experience. We dedicated in providing our clients top quality and best prices products. T-shaped steel we supply include all sizes and materials such as A36,ST37,S235JR and etc. We also have our own post-processing workshops to satisfy our clients needs on highly-customized products such as bending, cutting, puching and etc. Welcome come to consult Wuxi Angyihao if there is any questions or requests, our professional sales team will provide you the best service.

Q1:Are you a factory or a trader?

A1:We are a 100% factory located in Wuxi. Welcome to visit!

Q2:What quality certifications do your steel products have?

A2:Our products are certified by ISO 9001, CE, and comply with international standards such as EN 10025, ASTM, and JIS. We can provide test reports for each batch upon request.

Q3:What is the payment way of your company?

A3:T/T,sight L/C,Paypal,Western Union.

Q4:What is the shipping way?

A4:By sea,air,Fedex,DHL,UPS,TNT etc.

Q5:Do you offer after-sales support?

A5:Yes. If there’s any quality issue caused by our production, we’ll provide solutions (replacement, refund, or rework) within 7 working days after receiving your feedback.
