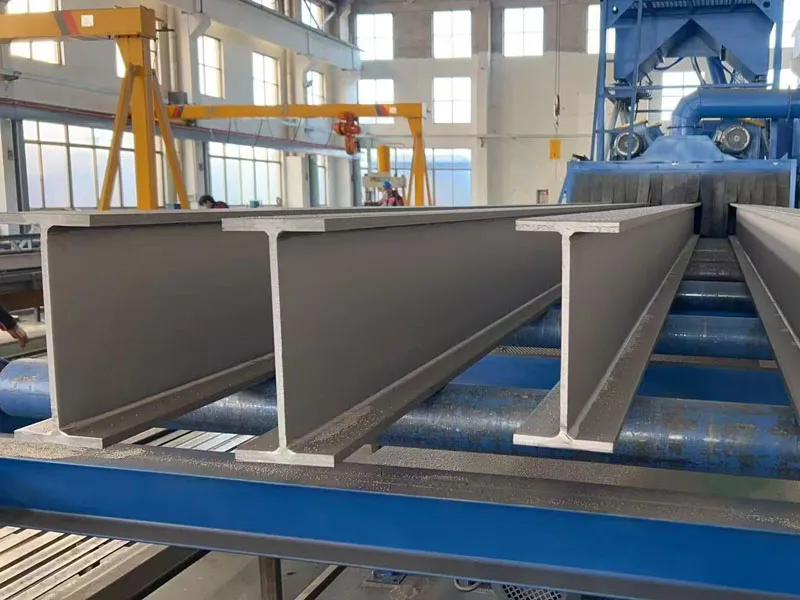

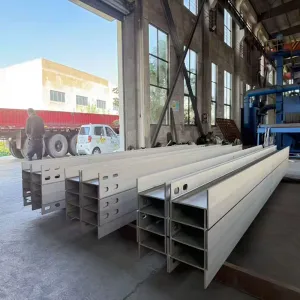

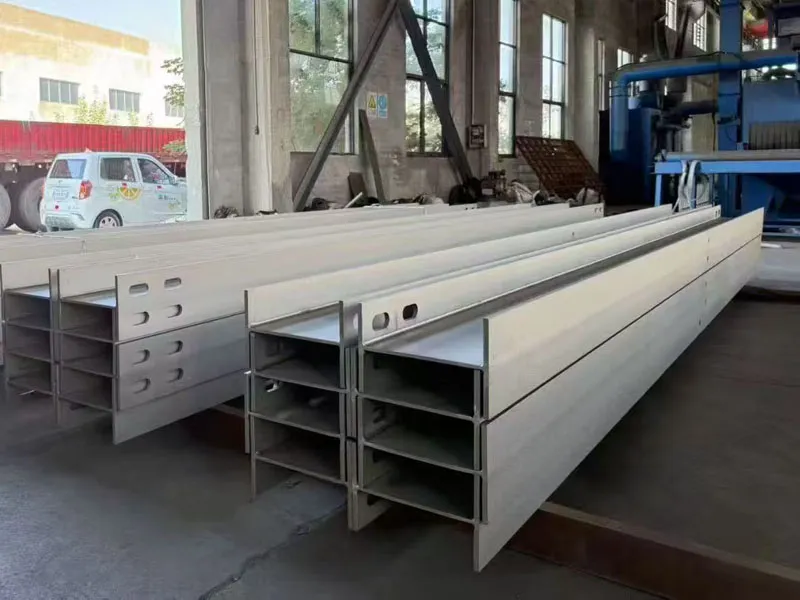

201 stainless steel H-beam is a cost-effective austenitic structural profile with an H-shaped cross-section. It features good corrosion resistance, formability, and weldability, serving as an economical alternative to 300-series grades. With optimized section distribution, it offers high bending strength, light weight, and easy fabrication. Widely used in industrial/civil buildings, bridges, machinery frames, and support structures, it balances performance and cost for general structural applications.

Wuxi Angyihao Metal Products Co., LTD is an expert manufacturer and distributor of stainless steel profile products with over 15 years experience. We dedicated in providing our clients top quality and best prices products.

The stainless steel profile products we supply including all sizes and grades such as 201, 304, 316 and etc. We also have our own post-processing workshops to satisfy our clients needs on highly-customized products such as Deburring, cutting, slitting, polishing and etc.

Welcome come to consult Wuxi Angyihao if there is any questions or requests, our professional sales team will provide you the best service.

This is the most common and efficient method for producing standard-sized H-sections in large quantities. It's a continuous, high-temperature process.

1.Melting and Casting: Raw materials (iron ore, chromium, nickel, molybdenum, etc.) are melted in an electric arc furnace (EAF). The molten steel is refined in an Argon Oxygen Decarburization (AOD) vessel to precisely control the chemical composition and remove impurities. The refined molten stainless steel is continuously cast into long, rectangular bars called blooms or slabs. These are the semi-finished starting points.

2.Reheating: The solid bloom is passed through a reheat furnace, where it is heated to a very high temperature (typically above 1200°C / 2192°F). This makes the steel plastic and malleable for rolling.

3.Rolling Mill - The Universal Mill: The hot bloom is passed through a series of rolls in a universal mill. This is the key piece of equipment. Horizontal Rolls: These contact the flanges of the section, controlling their width and thickness. Vertical Rolls: These simultaneously contact the web, controlling its height and thickness. The bloom passes back and forth through these rolls, with the gaps between the rolls being progressively reduced. With each pass, the metal is squeezed and elongated, gradually forming the familiar H-shape.

4.Cooling and Straightening: The newly formed, glowing-hot H-section moves onto a cooling bed, where it air-cools to room temperature. Controlled cooling is crucial to achieve the desired metallurgical properties. After cooling, the long beam may have warped slightly. It is passed through a series of rollers in a straightening machine to ensure it is perfectly straight.

5.Cutting to Length and Inspection: The continuous beam is cut to standard lengths (e.g., 12 meters) or specific customer lengths using heavy-duty saws. The final product is inspected for dimensional accuracy, surface quality, and mechanical properties.

Applications of Stainless Steel H Sections

Stainless steel H sections are used wherever strength and corrosion resistance are critical:

Architecture & Construction: Exposed beams, columns, and supports in modern buildings, airports, train stations, and canopies.

Industrial Structures: Support frames in chemical plants, pulp and paper mills, water treatment facilities, and offshore platforms.

Marine & Coastal: Dock structures, boat hoists, and support frames in saltwater environments.

Food & Beverage Industry: Support structures for processing equipment, platforms, and walkways that require frequent washing with aggressive chemicals.

Pharmaceutical & Medical: Cleanroom structures and support systems where hygiene is paramount.

Q: Why choose us?

A: Our company has been engaged in the iron and steel business for more than ten years. We have international experience and strong professionalism, and we can provide customers with a variety of high-quality iron and steel products.

Q: Can I provide OEM/ODM service?

A: Yes. Please feel free to contact us for more details.

Q: What are your payment terms?

A: One is to pay 30% deposit through T/T before production and more than 70% against a copy of the bill of lading; the other is100% irrevocable letter of credit at sight.

Q: Can we visit your factory?

A: Yes. Once we have your schedule, we will arrange a professional sales team to follow up your situation.

Q: Can you provide a sample?

A: Yes, for regular size, the sample is free, but the buyer has to pay the freight.
